รายละเอียดสินค้า:
การชำระเงิน:
|
| ไพรม์ พาวเวอร์: | 1200KW / 1500KVA | แรงดันไฟฟ้าที่ได้รับการจัดอันดับ: | 400V / 230V |
|---|---|---|---|
| แบรนด์เครื่องยนต์: | คัมมินส์ | รุ่นเครื่องยนต์: | KTA50-GS8 |
| ยี่ห้อเครื่องปั่นไฟ: | สแตมฟอร์ด | เครื่องกำเนิดไฟฟ้ากระแสสลับรุ่น: | PI734C |
| ประเภทการเชื่อมต่อ: | การเชื่อมต่อแบบ 3 เฟส 4 สาย "Y" | แผงควบคุม: | คอมเอป AMF25 |
| เน้น: | brushless alternator generator,engine generator set |
||
Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
Features and benefits:
1. Tightly structure, excellent design and craft
2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
3. Self-diagnostic capability simplifies troubleshooting
4. LCD display shows system status and setup information
5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
7. Enclosed muffler for added quietness
8. Service and maintenance accessible through easy-latch side service door
Generator data

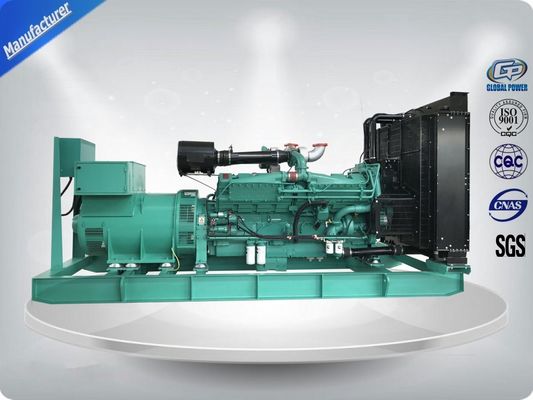

Diesel Generator GPC1200 (three phase)
| Prime Power (kw/kva) |
1200/1500 |
| Standby Power (kw/kva) |
1320/1650 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 2161 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 115 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) |
5120*2253*2400 |
| Open Type-Weight (kg) | 10900 |
| Continuous Running Time(hr.) | 8 |
Engine specifications
Technical data
Model KTA50-GS8
| Engine brand |
Cummins |
| Output Power (kw) | 1287 |
| Cylinder No. & Config. | 16, in “V” |
| Combustion System | direct injection |
| Compression Ratio | 14.9:1 |
| Displacement (L) | 50.3 |
| Bore X Stroke (mm) |
159*159 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) |
165(Engine Only) |
| Fuel Consump. (g/kw·h) | 204 |
| Oil Capacity (L) | 204 |
Alternator specifications
Main features:
1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
2. 2/3 pitch winding as standard, to avoid excessive neutral currents
3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
4. Easy access for installation and maintenance
5. IP23 as standard
6. Self-excited control system
7. Resist of corruption of oil and acid
Technical data
Model PI734C
| Alternator brand | Stamford |
| Rated Power (kw) | 1240 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Control system
AMF 25 controller
Main features:
1. Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
2. Security password-protected programming levels
3. All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
4. Power supply range is wide, accommodating to different starting battery voltage environment
5. Built-in watch dog can never be dead halt, ensuring smooth program execution
Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
Company profile
Wuxi Global Power Technology CO., Ltd. have been engaged in research, development, manufacture and sales of energy-saving and environment-friendly generating sets, related parts and supporting equipment.
Our company has passed the quality management system certification of ISO9000 and environmental management system certification of ISO14000, fully certified, full compliance with industry standards at domestic and abroad.
Global power, as a strategic partner and designated OEM manufacturer of American Cummins (CUMMINS), UK Perkins (PERKINS), Volvo (VOLVO), UK Stanford (STAMFORD) in China has been keeping a steady, friendly and long-term cooperation with world leading companies.
Product Quality Commitment
1. All products are new products, and meet the present national standard, international standard as well as the industrial standards
2. All products are manufactured according to the ISO9001 Quality Management System strictly.
3. All products are commissioned and tested strictly according to present standard.
4. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
5. All spare parts are original ones.
Service Commitment
1. Pre-sale service
Suggest the best choice or referential suggestion based on customer’s information. Offer the suggestion or service of the installation to customer if needed. Answer all questions about the product from customer.
2. Sale of service
Offer the installation index by the professionals. The training or relative files of the operation & maintenance to the customers.
3. After-sale service
Warranty time: one year or 1000 running hours, whichever comes first. Build customers’ profiles, follow-up service, make regular calls on customers.
