รายละเอียดสินค้า:
การชำระเงิน:
|
| ไพรม์ พาวเวอร์: | 120KW / 150 เควีเอ | แรงดันไฟฟ้าที่ได้รับการจัดอันดับ: | 400V / 230V |
|---|---|---|---|
| แบรนด์เครื่องยนต์: | LOVOL, CUMMINS, เพอร์กินส์, อีซูซุ ฯลฯ | ยี่ห้อเครื่องปั่นไฟ: | สแตมฟอร์ด, เมคซี อัลเต้, ฟาราเดย์, ก็อปปี้ สแตมฟอร์ด ฯลฯ |
| ระบบควบคุม: | DeepSea, SmartGen, Comap ฯลฯ | ความถี่: | 50 Hz |
| เฟส: | 3 | ||
| เน้น: | genset silent generator set,genset silent portable |
||

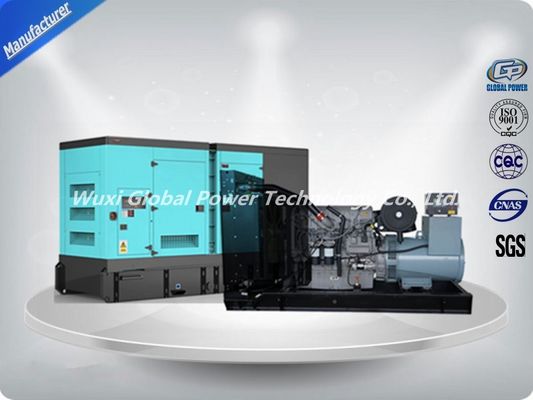

Soundproof Silent Diesel Generator Set 150 KVA Lovol 75dB at 7 M with Super Performance
Performance of Global Power new design canopy:
1. Fit for generator of 10 KVA - 200 KVA. Humanization design is convenient to operate. AVR controller is connected to the controller system. Drain valves for water and fuel can be stretched out of the canopy through a pipe line.
2. Big capacity of fuel tank partitioned into two parts, prevent fuel leakage at special ambient.
3. Multiple lifting ways with additional dragging holes for comfortable unloading.
4. Assembled type with pieces of canopy for comfortable maintenance.
5. About safety: The emergency stop button is available without opening the door. The fan has an additional protection net. All locks are designed for theftproof style.

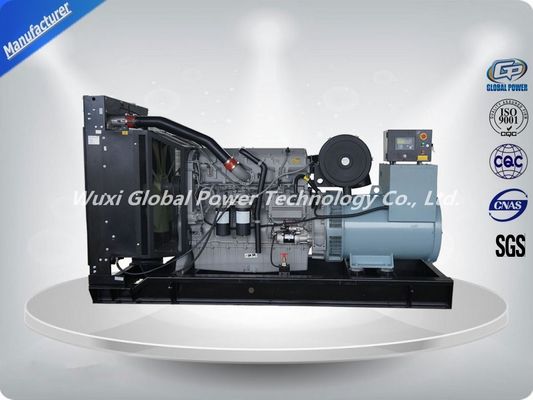

Generator data
Diesel Generator GPL120 (three phase)
| Prime Power (kw/kva) | 120/150 |
| Standby Power (kw/kva) | 132/165 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 217 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 2670*920*1440 |
| Open Type-Weight (kg) | 1550 |
| Soundproof Type- Dimension (L*W*H) (mm) | 3600*1250*1750 |
| Soundproof Type-Weight (kg) | / |
| Fuel Tank Capacity(L) | 400 |
| Continuous Running Time(hr.) | 8 |
Features and benefits
1. Tightly structure, excellent design and craft
2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
3. Self-diagnostic capability simplifies troubleshooting
4. LCD display shows system status and setup information
5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
7. Enclosed muffler for added quietness
8. Service and maintenance accessible through easy-latch side service door
Diesel Engine Specification:
|
Brand: LOVOL Model: 1106C-P6TAG3 No. of Cylinders: 6 Type of Cylinder: Vertical In-line Bore/Stroke: 100mm/127mm |
Rotation Speed: 1500RPM Fuel Consumption: 208g/kw.h Speed Governing: Electronic Air Intake System: Turbocharged |

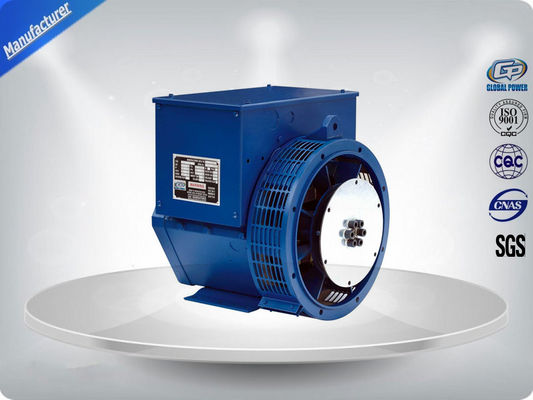

Alternator Specification:
|
Brand: Global Powr Model: GPI274FS Insulation Class: H Type of Excitation: Brushless self-excitation Protection Class: IP23 |
Vol. Control Method: AVR(Automatic Voltage Regulation) Voltage Regulation Rate: ±1% Vol. Harmonic Wave Distorted: <2%
|

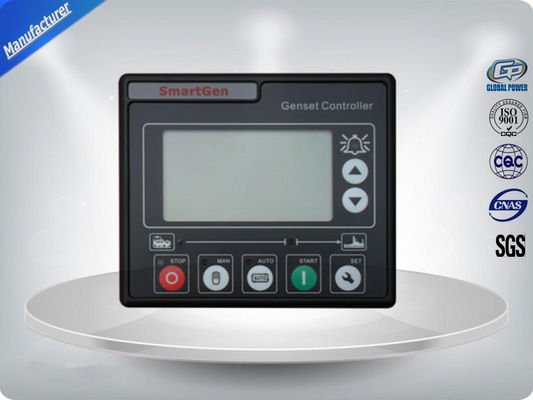

HGM410 controller
Main features:
1. Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
2. Security password-protected programming levels
3. All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
4. Power supply range is wide, accommodating to different starting battery voltage environment
5. Built-in watch dog can never be dead halt, ensuring smooth program execution
6. Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
FAQ
(1) Q: Is your company a manufacturer or trade company?
A: We are professional manufacturing factory.
(2) Q: What is the range of your diesel generator power?
A: Now we mainly produce 5KW to 2500KW generator sets.
(3) Q: Which brand Electrical Generator do you produce?
A: Now we produce USA brand, deutz generator price, Sweden Volvo Generator, Korea Doosan diesel generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Q: What is your main market?
A: We mainly export Electrical Generators to Africa, Middle East, Asia, and South Korea...
