รายละเอียดสินค้า:
การชำระเงิน:
|
| ไพรม์ พาวเวอร์: | 250kW / 313kVA | สแตนบายพาวเวอร์: | 275kW / 344kVA |
|---|---|---|---|
| เครื่องยนต์: | โคโฟ WT12D-308E | เครื่องกำเนิดไฟฟ้ากระแสสลับ: | วัตเทค WHI4DC |
| แรงดันไฟฟ้าที่ได้รับการจัดอันดับ: | 400V / 230V | มิติ: | 3000*1150*1800 มม |
| น้ำหนัก: | 255350 กิโลกรัม | ||
| เน้น: | brushless alternator generator,engine generator set |
||
Outdoor projects, road construction, telecome / data center, hospitals, mining projects, airports, shopping malls, etc.
| 250kw / 313 kva KOFO gensets technology parameters | |
| Genset | |
| Type:GPK250 | Rated frequency: 50 HZ / 60 HZ |
| Output power:250KW / 313KVA |
Frequency Recovery Time: ≤5S |
| Power factor:COSΦ=0.8(lag) |
Wave Distortion: ≤5%, sine wave |
| Rated voltage:400/230V |
Running Noise db(A)/7m: 100 |
| Current: 451A |
Battery capacity (V-Ah): 12V 100Ah |
| Frequency:50HZ | Fuel tank capacity: 600L |
| Speed:1500RPM | Continuous running time: 8 HRS |
| Dimension:3000*1150*1800 MM | The waste of fuel with full load: 188g/kw.h |
| Weight: 2550kg | |

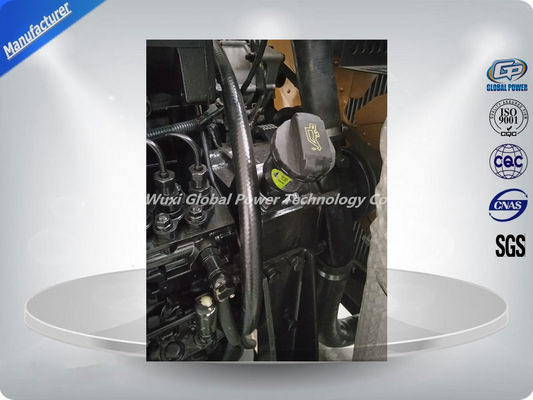

| Diesel Engine | |
| Brand/Origin:China KOFO | Cooled System:Water Cooling |
| Engine Model: WT12D-308E | Type:Direct Injection,Four-stroke,V6-type |
| Cylinder No.:6 | Rotating Speed:Electric speed regulator |
| Bore*Stroke:125*147mm | Aspiration Type:Ti |
| Compression Ratio:16:1 | Displacement: 14L |
| Starting Way:DC24Vwith electricity | Lubricating Capacity:39L |
| Alternator | |
| Standard Brand/Origin: WATTEK | Insulation Degree:H degree |
| Rated Power: 250 KW | Grading Protection:IP22 |
| The connecting way of the phase:Three phase four lines | Optional Brand:Meccalte, Marathon,etc |

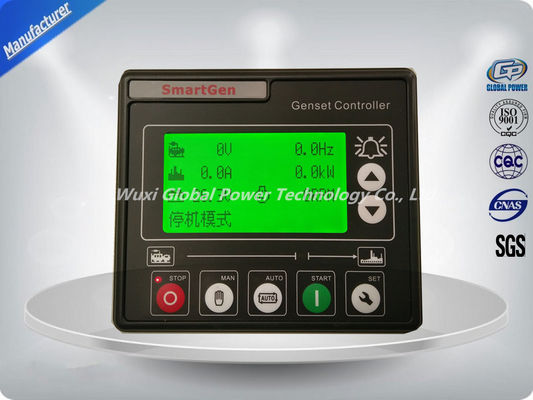

| Control screen | |
| Brand:Smartgen/Deepsea | Features:English interface;LED screen;Touch buttons |
| Based Function:1.Display loading power,voltage,current,frequency,speed,temperature,oil pressure,running time,etc | |
| 2.Warning when low or high voltage,low or high frequency,over current,over or low speed,low or over battery voltage,etc | |
| 3.Over load protection,over/under frequency protection,over/under/imbalance voltage protection and low oil shutdown. | |

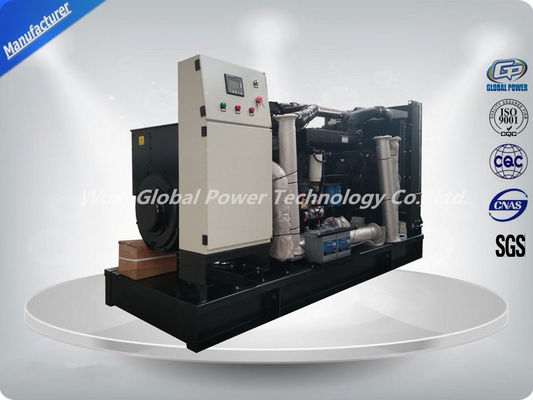

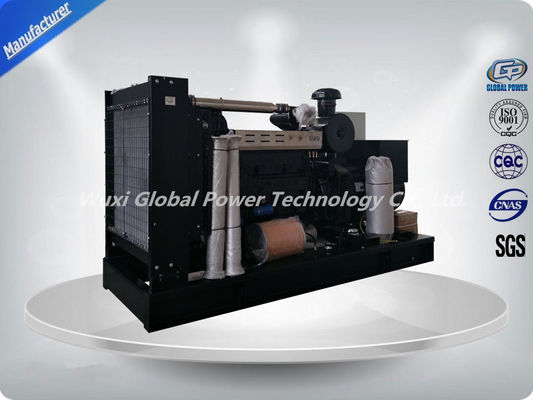

Product Display:
Test Cabinet:
Company Information
Wuxi Global Power Technology CO., Ltd. is located in Jiangsu Wuxi , having been engaged in research, development, manufacture and sales of energy-saving and environment-friendly generating sets, related parts and supporting equipment, which could meet the demands of a wide variety of emergency and common power solutions and integrated systems’building.
The main products of GLOBAL POWER include diesel generating set, gasoline generating set and so on. They are divided into the categories of open type, soundproof type, containerized type, vehicle-mounted type, trailer type and mobile light tower etc.
Global power, as a strategic partner and designated OEM manufacturer of American Cummins, UK Perkins, Volvo , UK Stanford in China has been keeping a steady, friendly and long-term cooperation with world leading companies. At the same time, we also have the mature solution of foreign projects, rich experience in supporting, and have maintained a great partnership with a number of domestic suppliers of electrical and mechanical equipments and components of the distribution system. Each customer, the different needs of each project, we provide the technical supporting system, and find out the best solution.
Company uphold "duty, integrity, innovation and enterprise" as the spirit of enterprise, and constantly improve the quality of management system, and actively fulfill the social responsibility. Our company has passed the quality management system certification of ISO9000 and environmental management system certification of ISO14000, fully certified, full compliance with industry standards at domestic and abroad.
Company takes " win the competition by quality, develop new markets by technology, satisfy customer by service" as business philosophy, providing high-quality products and warm and considerate service with first-class technology and rich experience.
