รายละเอียดสินค้า:
การชำระเงิน:
|
| อัตราการส่งอากาศ: | 1.6 ลบ.ม./นาที | ความดันการทำงาน: | 30 บาร์ |
|---|---|---|---|
| พิมพ์: | ลูกสูบลูกสูบไดรฟ์ | โหมด: | การหล่อลื่นมอเตอร์ไฟฟ้ากระแสสลับ |
| สไตล์: | น้ำมันหล่อลื่น | น้ำหนัก: | 600 กิโลกรัม |
| ตลาด: | ทั่วโลก | รหัส HS: | 8414809090 |
| เน้น: | portable air compressor,quiet air compressor |
||
Model Specification:

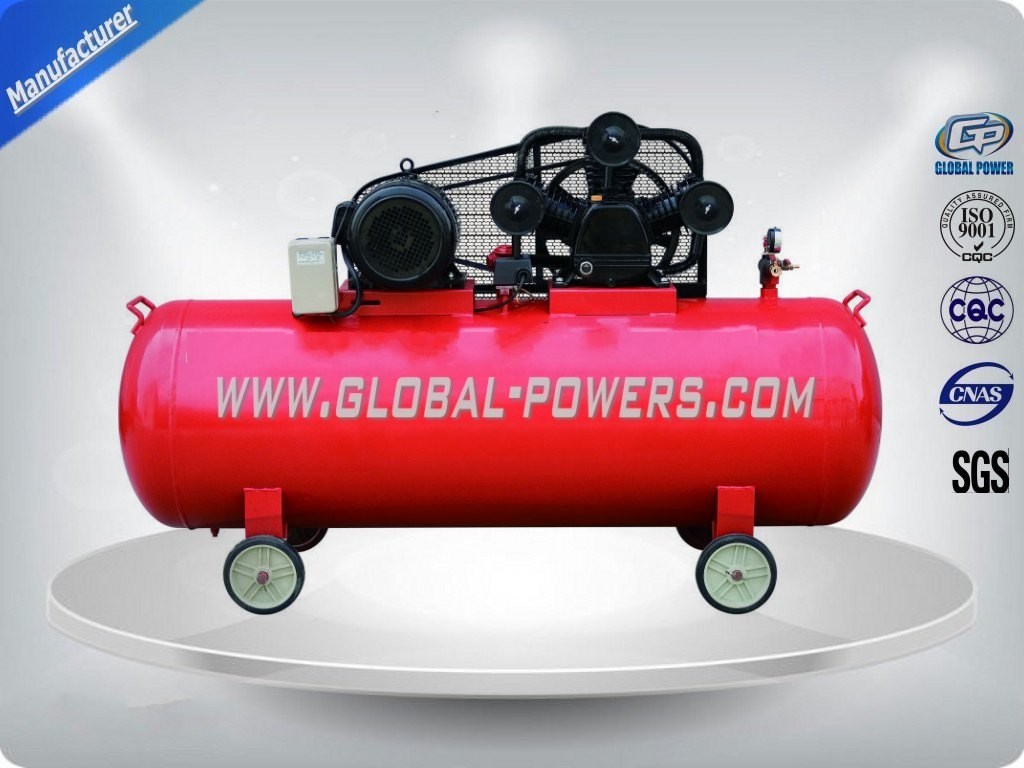

3Mpa piston air compressor
| Block type | PISTON | PISTON | PISTON | PISTON | PISTON | PISTON | PISTON |
| Volume(m3/min) | 0.6 | 0.8 | 1.0 | 1.2 | 1.6 | 2.0 | 3.0 |
| W.Pressure(Mpa) | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| RPM(r/min) | 830 | 800 | 780 | 780 | 830 | 830 | 780 |
| Lubrication | splash | splash | splash | splash | splash | splash | splash |
| drive | belt | belt | belt | belt | belt | belt | belt |
| cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling |
| Motor power(Kw) | 7.5 | 7.5 | 11 | 15 | 18.5 | 2X11 | 30 |
| Power source(v/Hz) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| noise(dB (A)) | ≤72 | ≤72 | ≤78 | ≤78 | ≤85 | ≤85 | ≤85 |
| Cylinders diameter(mm) | 2X¢95 ¢55 |
2X¢100 ¢55 |
2X¢120 ¢65 |
2X¢120 ¢65 |
2X¢135 ¢120 ¢65 |
4X¢120 2X¢55 |
¢210 ¢120 ¢100 |
| size(mm) | 1470(L) 530(W) 1020(H) |
1490(L) 600(W) 1160(H) |
1550(L) 730(W) 1280(H) |
1620(L) 730(W) 1280(H) |
1900(L) 850(W) 1600(H) |
1900(L) 900(W) 1400(H) |
1850(L) 1000(W) 1100(H) |
| weight(Kg) | 290 | 430 | 480 | 520 | 600 | 600 | 1150 |
