บ้าน ผลิตภัณฑ์Diesel Generator Controller

10Kw Diesel Generator Controller 1500Rpm 2 Cylinder AC1.5kV / 1min 1mA leakage current

อย่างดี เครื่องกำเนิดไฟฟ้าดีเซลแบบเปิด สำหรับการขาย
อย่างดี เครื่องกำเนิดไฟฟ้าดีเซลแบบเปิด สำหรับการขาย
GLOBAL POWER is highly praised from business philosophy of integrity, pragmatic innnovation, growing ever stronger in the fierce market competitiom.

—— Mr Chen

Thanks to GLOBAL POWER being accompanied all the way!

—— Steven

Honesty, Win-win, Everlasting coperation for Global Power , for both us!

—— Mr Su Jundao

สนทนาออนไลน์ตอนนี้ฉัน

10Kw Diesel Generator Controller 1500Rpm 2 Cylinder AC1.5kV / 1min 1mA leakage current

จีน 10Kw Diesel Generator Controller 1500Rpm 2 Cylinder AC1.5kV / 1min 1mA leakage current ผู้ผลิต
10Kw Diesel Generator Controller 1500Rpm 2 Cylinder AC1.5kV / 1min 1mA leakage current ผู้ผลิต 10Kw Diesel Generator Controller 1500Rpm 2 Cylinder AC1.5kV / 1min 1mA leakage current ผู้ผลิต

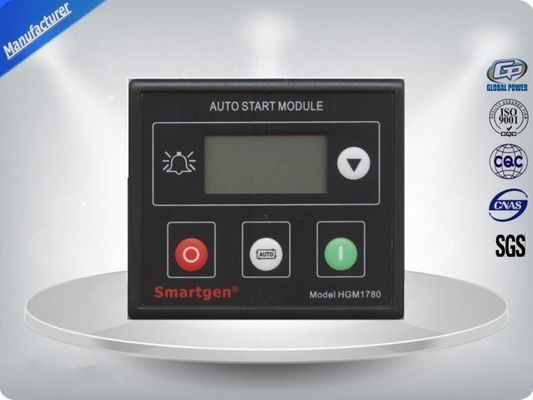

ภาพใหญ่ :  10Kw Diesel Generator Controller 1500Rpm 2 Cylinder AC1.5kV / 1min 1mA leakage current

รายละเอียดสินค้า:

สถานที่กำเนิด: มณฑลเจียงซูประเทศจีน
ชื่อแบรนด์: Smartgen
ได้รับการรับรอง: CE / ISO
หมายเลขรุ่น: HGM1780

การชำระเงิน:

จำนวนสั่งซื้อขั้นต่ำ: 1ชุด
ราคา: negotiable
รายละเอียดการบรรจุ: โฟมพลาสติกหรือกล่องไม้อัดบรรจุ
เวลาการส่งมอบ: 25 วันหลังจากได้รับเงินดาวน์
สามารถในการผลิต: 2,000 ชุด / ปี
รายละเอียดสินค้า
สถานที่กำเนิด:: จีน (แผ่นดินใหญ่) ยี่ห้อ: สมาร์ทเจน
ความถี่ของเครื่องกำเนิดไฟฟ้ากระแสสลับ: 50เฮิร์ต / 60เฮิร์ต หมายเลขรุ่น:: HGM1780
แผงคัตเอาท์ (l * w * h / mm): 110มม.x90มม คอนโทรลเลอร์: HGM420 / 410
ขนาดโดยรวม:: 88 มม. x 76 มม. x 44 มม น้ำหนัก:: 0.2กก
เน้น:

generator paralleling controller

,

generator speed controller

10Kw Diesel Generator Controller 1500Rpm 2 Cylinder AC1.5kV / 1min 1mA leakage current



Specifications :

Item

Content

Operating Voltage

DC8. 0V to 35. 0V, Continuous Power Supply

Power Consumption

Standby, 12V-0.3W, 24V-0.4W

Working, 12V-1W, 24V-1.1W

Alternator voltage  Input

1P2L 15V AC ~ 360 V AC (ph-N)

Alternator Frequency

50/60Hz

Speed sensor voltage

1V to 24V (active value)

Speed sensor Frequency

Max. 10kHz

Max. accumulative running  time

99999.9 hours (it is 1/10 hour after decimal point, means changing/6 min.)

Start Relay Output

1Amp DC28V  DC B+ power on to output

Fuel Relay Output

1Amp DC28V  DC B+ power on to output

Stop Relay Output

1Amp DC28V  DC B+ power on to output

Idle Relay Output

1Amp DC28V  DC B+ power on to output

Configured Relay Output

1Amp DC28V  DC B+ power on to output

Switching value input port

Active when connected with B-

Overall dimensions

88mm x 76mm x 44mm

Panel cut off

78x66mm

Working conditions

Temperature, (-25~+70)ºC

Humidity, (20~90)% without condensation

Storage Condition

Temperature, (-30~+80)ºC

Protective Level

IP55, when waterproof rubber ring added between controller and its panel.

IP42, when waterproof rubber ring not have between controller and its panel.

Insulation Intensity

Object: among in input/output/power

Quote standard: IEC688-1992

Test way: AC1.5kV/1min 1mA leakage current

Weight

0.15kg



Description



HGM400 series automatic controller, integrating digital, intelligent and network techniques, is used for automatic control system of generator. It can achieve automatic start/stop, data measuring and “three remote” functions (SG485 module is needed). The controller uses LCD display, optional Chinese, English, Spanish and Russian display interface with easy and reliable operation.
HGM400 series automatic controller uses micro-processing technique which can carry out precision measuring, constant value adjustment, timing and threshold setting and etc.. All the parameters can be adjusted from front panel or through programmable interface (USB to LINK, can use SG72 adaptor) via PC. It can be widely used in all types of generator automatic control system for compact structure, simple connections and high reliability.


Our Service:

  1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
  2.  Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
  3. Build customers’ profiles, follow-up service, make regular calls on customers

Our Picture:

10Kw Diesel Generator Controller 1500Rpm 2 Cylinder AC1.5kV / 1min 1mA leakage current10Kw Diesel Generator Controller 1500Rpm 2 Cylinder AC1.5kV / 1min 1mA leakage current
Our Main Product:

  1. Diesel Generating Set
  2. Gasoline Generating Set
  3. Gas Generating set
  4. Mobile Light Tower
  5. Forklift
  6. Air Compressor
  7. Control System
  8. Standard Control Panel
  9. Auto Control Panel
  10. Auto Parallel Control Panel
  11. ATS
  12. Brushless Alternat


Warranty and Maintenance:

  1. Guarantee Period: One year or 1000 running hours whichever comes first.
  2. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
  3. Spare-parts can also be sent by air express.
