WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
ผู้ใช้ต้องมาก่อน, ยึดมั่นความซื่อสัตย์; สร้างแบรนด์ GP ด้วยคุณภาพ, สร้างชื่อเสียงด้วยบริการ
รายละเอียดสินค้า:
การชำระเงิน:
|
| พิมพ์:: | เครื่องกำเนิดไฟฟ้าดีเซลอัตโนมัติควบคุมไมโครคอมพิวเตอร์ | ระบบทำความเย็น: | น้ำทะเลหล่อเย็น, เครื่องแลกเปลี่ยนความร้อน |
|---|---|---|---|
| ประเภทเอาต์พุต: | ไฟฟ้ากระแสสลับสามเฟส | ความเร็ว: | 15.00น |
| กำลังไฟพิกัด: | 90กิโลวัตต์ | การใช้งาน: | หน่วยร่วม |
| โหมดกระตุ้น: | ตัวกระตุ้นแบบหมุน AC | ตลาดส่งออก: | ทั่วโลก |
| จังหวะ: | สี่จังหวะ | วิธีการติดตั้ง: | ที่ตายตัว |
| เน้น: | Marine Genset,Emergency Generator Set |
||

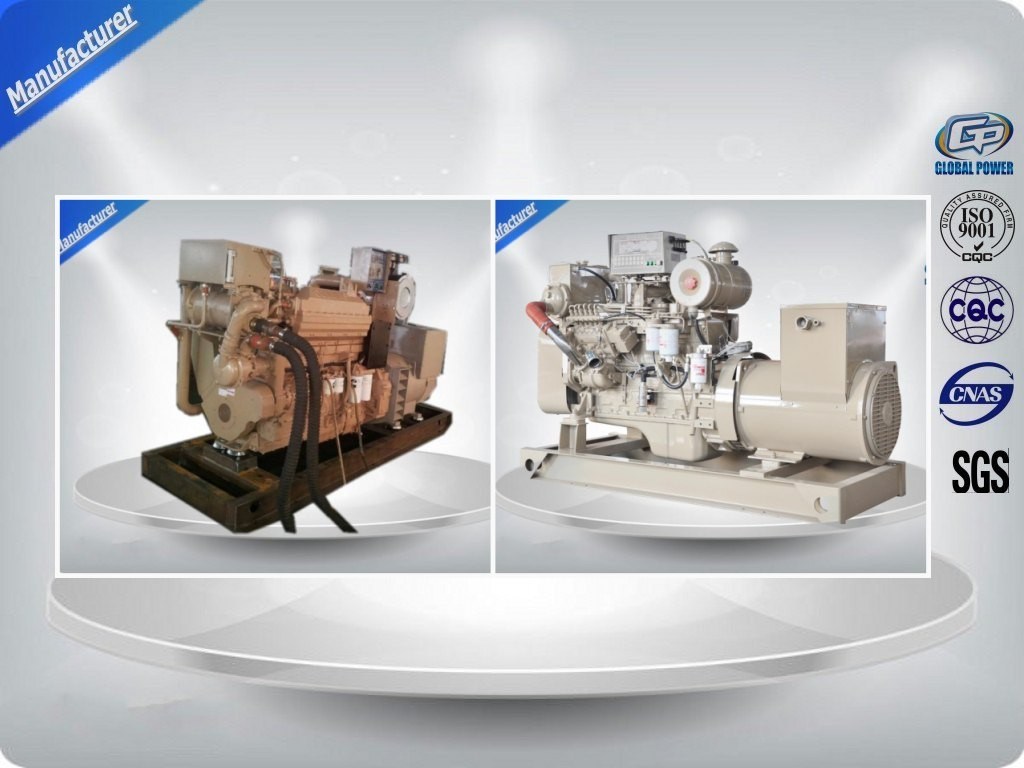

CUMMINS Marine Genset Model List :
![]()
Specification:
| 1. Specification of genset | ||||||||
| Rated voltage | 400/230V | |||||||
| Rated current | 180A | |||||||
| Rated frequency(HZ) | 50 | |||||||
| Rated speed | 1500rpm | |||||||
| Power factor | 0.8(lagging) | |||||||
| Dimensions(mm) (L×W×H) | 2250*850*1400 | |||||||
| Genset weight(kg) | 1500 | |||||||
| 2. Specification of diesel engine | ||||||||
| Number of Cylinders | 6 | |||||||
| Cylinder arrangement | Vertical in-line | |||||||
| Cycle | Four stroke | |||||||
| Aspiration | Turbocharged | |||||||
| Bore×Stroke (mm×mm) | 114 x 135 | |||||||
| Displacement (Liter) | 8.3 | |||||||
| Rated speed | 1500rpm | |||||||
| Starting Method | DC24V electrical starting | |||||||
| Speed Governor | Electronic | |||||||
| Cooling System | By sea water heat exchanger | |||||||
| Fuel Consumption | 212g/kw.h | |||||||
| 3. Specification of alternator | ||||||||
| Alternator brand | Stamford | |||||||
| Number of Phase | 3 | |||||||
| Connecting Type | 3 Phase and 4 Wires | |||||||
| Number of Bearing | 1 | |||||||
| Protection Grade | IP23 | |||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | |||||||
| Insulation Class | H | |||||||
Supply Scope:
Complete Cummins Marine Diesel Generator Sets including marine diesel engine, alternator, heat exchanger+water pump or radiator, standard control system, circuit breaker, absorber, filters, testing report, marine class certificate, user books and other accessories etc..
![]()
Global Power Service:
1. In manufacturing of power generators, GLOBAL POWER is able to draw on an experience
of more than 10 years. Our total production capacity is about 20,000 units per year.
2. The power generator sets are designed for continuous power supply and have proved 10,000
fold around the world in various applications on every continent.
3. Except standard products, we also provide customized design service for you, design generator
sets as per your specific requirements.
4. We provide professional & in time service after sale.
