| รุ่นเครื่องยนต์: | D30A/930 | ระบบฉีดน้ำมันเชื้อเพลิง: | แรงดันสูง |
|---|---|---|---|
| ความทะเยอทะยาน: | เทอร์โบชาร์จและอินเตอร์คูล | เทอร์โบชาร์จเจอร์: | ประเภทเวสเกท |
| แรงดันไฟฟ้า: | 400V; 380V | เฟส: | สาม / เฟสเดียว |
| พลังการให้คะแนน: | 320/400 | พลังงานสแตนด์บาย: | 352/440 |
| เน้น: | brushless synchronous generator,engine generator set |
||

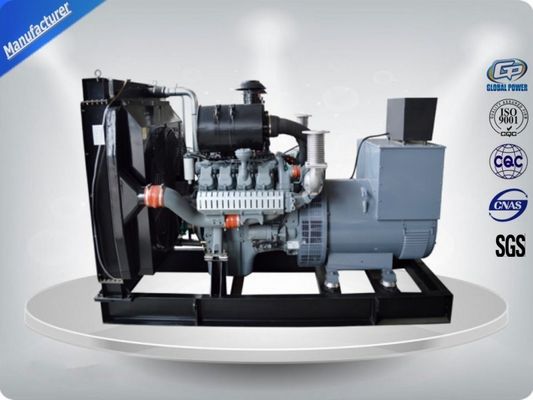

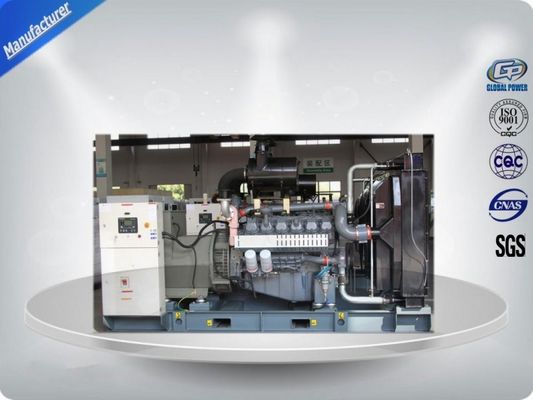

Diesel Generating Set With D30A VMAN Diesel Engine Prime Power 830 / 1038 Open Type
Technical Specifications:
Diesel Generator GPVM320 (three phase)
|
Prime Power (kw/kva) |
320/400 |
|
Standby Power (kw/kva) |
352/440 |
|
Rated Voltage (V) |
400/230 |
|
Voltage Recovery Time |
≤1S |
|
Rated Current (A) |
577 |
|
Rated Frequency (Hz) |
50 |
|
Frequency Recovery Time |
≤5S |
|
Wave Distortion |
≤5%, sine wave |
|
Running Noise db(A)/7m(Silent type) |
75 |
|
Battery capacity (V-Ah) |
12V 100Ah |
|
Open Type-Dimension (L*W*H) (mm) |
3100×1400×1850 |
|
Open Type-Weight (kg) |
2800 |
|
Soundproof Type- Dimension (L*W*H) (mm) |
4000*1800*2120 |
|
Soundproof Type-Weight (kg) |
4600 |
|
Fuel Tank Capacity(L) |
720 |
|
Continuous Running Time(hr.) |
8 |
Engine specifications
Model D15A1
|
Engine brand |
VMAN |
|
Output Power (kw) |
365 |
|
Cylinder No. & Config. |
V8 type |
|
Combustion System |
direct injection |
|
Compression Ratio |
14.6:1 |
|
Displacement (L) |
14.618 |
|
Bore X Stroke (mm) |
128*142 |
|
Engine Speed (r/min) |
1500 |
|
Speed Governing |
Electronic |
|
Idling Speed(r/min) |
700±50 |
|
Governor Efficiency |
≤3% |
|
Cooling system |
Water-cooled |
|
Aspiration Type |
Ti |
|
Starting System |
24V DC Electric |
|
Fuel Consump. (g/kw·h) |
198 |
Testing Items of Global Power's Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
Control system
l Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
l Security password-protected programming levels
l All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
l Power supply range is wide, accommodating to different starting battery voltage environment
l Built-in watch dog can never be dead halt, ensuring smooth program execution
l Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
Global Power advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
