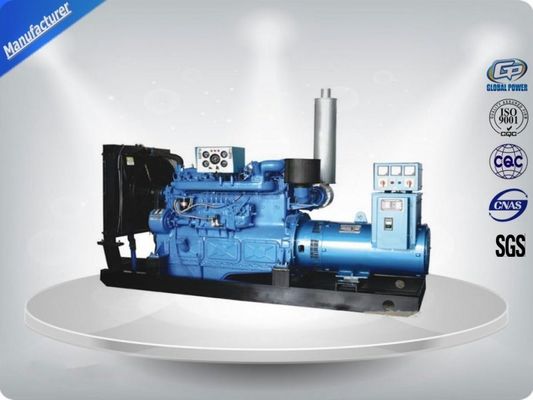

320kw 400kva Black Start Diesel Generator 1500rpm 3200*1150*1900
-
-
ภาพใหญ่ :
320kw 400kva Black Start Diesel Generator 1500rpm 3200*1150*1900
|
รายละเอียดสินค้า:
| สถานที่กำเนิด: |
มณฑลเจียงซูประเทศจีน |
| ชื่อแบรนด์: |
Global Power |
| ได้รับการรับรอง: |
CE / ISO |
| หมายเลขรุ่น: |
จีพีพี320 |
การชำระเงิน:
| จำนวนสั่งซื้อขั้นต่ำ: |
1ชุด |
| ราคา: |
negotiable |
| รายละเอียดการบรรจุ: |
โฟมพลาสติกหรือกล่องไม้อัดบรรจุ |
| เวลาการส่งมอบ: |
25 วันหลังจากได้รับเงินดาวน์ |
| สามารถในการผลิต: |
2,000 ชุด / ปี |
|
รายละเอียดสินค้า
| ไพรม์ พาวเวอร์: |
320KW 400KVA |
พลังงานสแตนด์บาย: |
352KW 440KVA |
| รุ่นเครื่องยนต์: |
เพอร์กิน 2206C-E13TAG3 |
ระบบทำความเย็น: |
ระบายความร้อนด้วยน้ำ |
| จัดอันดับความถี่: |
50 Hz |
ความเร็วของเครื่องยนต์: |
1500 รอบต่อนาที |
| มิติ: |
3200*1150*1900 |
น้ำหนัก: |
2875 กิโลกรัม |
| เน้น: |
brushless synchronous generator, brushless alternator generator |
320kw 400kva Perkins water-cooled low fuel diesel generator, 3 phase 1500rpm open type
Technical Specifications :
| Prime Power (kw/kva) |
320/400 |
| Standby Power (kw/kva) |
352/440 |
| Rated Voltage (V) |
400/230 |
| Voltage Recovery Time |
≤1S |
| Rated Current (A) |
576 |
| Rated Frequency (Hz) |
50 |
| Frequency Recovery Time |
≤5S |
| Wave Distortion |
≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) |
75 |
| Battery capacity (V-Ah) |
24V 100Ah |
| Open Type-Dimension (L*W*H) (mm) |
3200*1150*1900 |
| Open Type-Weight (kg) |
2875 |
| Soundproof Type- Dimension (L*W*H) (mm) |
4250*1500*2300 |
| Soundproof Type-Weight (kg) |
7225 |
| Fuel Tank Capacity(L) |
800 |
| Continuous Running Time(hr.) |
8 |
- Tightly structure, excellent design and craft
- Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
- Self-diagnostic capability simplifies troubleshooting
- LCD display shows system status and setup information
- Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
- Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
- Enclosed muffler for added quietness
- Service and maintenance accessible through easy-latch side service door.
Perkins Engine:
Model 2206C-E13TAG3
| Engine brand |
Perkins |
| Output Power (kw) |
392 |
| Cylinder No. & Config. |
6, in-line |
| Combustion System |
direct injection |
| Compression Ratio |
16.3:1 |
| Displacement (L) |
12.5 |
| Bore X Stroke (mm) |
130*157 |
| Engine Speed (r/min) |
1500 |
| Speed Governing |
Electronic |
| Starting System |
24V DC Electric |
| Filter System |
Dry oil filter/Fuel filter/Oil filter |
| Cooling system |
Water-cooled |
| Coolant capacity (L) |
51.4 |
| Fuel Consump. (g/kw·h) |
210 |
| Oil Capacity (L) |
40 |
feature:
- Six-cylinder, water-cooled, in-line diesel engine
- Efficient fuel system for max power output and durability
- Large-capacity air cleaner
- Cost effective, fuel efficient and reliable performance
- Functional engine with compact structure
- Excellent after-sales service and sufficient spare parts supplying
- Easy installation and ready access for routine maintenance
Alternator:
Model ECO40-1S/4
| Rated Power (kw) |
320 |
| Excitation System |
Brushless, self-exciting |
| Voltage Regulation Mode |
AVR |
| Connection Type |
3phase,4wires,”Y” connection |
| Pole No. |
4 |
| Rotation Speed (r/min) |
1500 |
| Temperature Rise (℃) |
125 |
| Insulation class |
H |
| Voltage Regulation (0 load) |
≥95%～105% |
| Voltage accuracy |
≤±1% |
| Protection Grade |
IP23 |
| Telephone Influence Factor |
TIF＜50 |
| Harmonic Coefficient |
THF＜2% |
|
feature:
- Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
- 2/3 pitch winding as standard, to avoid excessive neutral currents
- Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
- Easy access for installation and maintenance
- IP23 as standard
- Self-excited control system
- Resist of corruption of oil and acid
Control system :
DSE4620 controller
Main features:
- Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
- Security password-protected programming levels
- All parameters use digital modulation, with higher reliability and stability
- Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
- Power supply range is wide, accommodating to different starting battery voltage environment
- Built-in watch dog can never be dead halt, ensuring smooth program execution
- Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

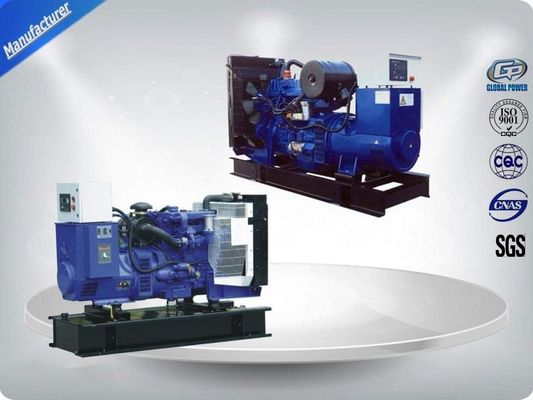

Our Picture :
Standard Supply Scope:
- Advanced design and excellent processed: The engine with strong power, can adapt to any condition, such as high strength and heavy load.
- Integrated design: The cylinder block and head are designed as multi-funtional parts so that the number of the partshas reduced 40% compare with competitive engines. The failure rate has markedly reduced.
- Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame .
- Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
- Documents included: manual book, product qualified card
Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
Inspection and Test:
- Each engine shall be tested at manufacturer’s workshop to certify the engine output and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
- All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
- The purchaser shall call for additional testing if test results are unsatisfactory or marginal. Any equipment rejected shall be repaired or replaced to the purchaser’s satisfaction and tests shall be repeated.
- Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the purchasers satisfaction at the manufacturers cost.
- 5. The engine and generator shall be tested individually in accordance with relevant standards specified above.
- The completed and individually tested engine and generator shall be assembled onto the base plate with all auxiliaries, instruments and controls for a complete test of the generator set.
Guarantee for Our Generators:
- Guarantee Period: One year or 1000hours whichever comes first.
- During the guarantee period, the spare-parts will be sent through your shipping agency in China.
- Spare-parts can also be sent thought FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
- 24 hours service hot-line is available for customers.
