WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
ผู้ใช้ต้องมาก่อน, ยึดมั่นความซื่อสัตย์; สร้างแบรนด์ GP ด้วยคุณภาพ, สร้างชื่อเสียงด้วยบริการ
รายละเอียดสินค้า:
การชำระเงิน:
|
| ความเร็ว: | 1500 รอบต่อนาที | ประเภทเอาต์พุต: | ไฟฟ้ากระแสสลับ 3 เฟส |
|---|---|---|---|
| แรงดันไฟฟ้า:: | 400/230V | กำลังหลัก (kw/kva): | 80/100 |
| กำลังสแตนด์บาย (kw/kva): | 88/110 | รุ่นเครื่องยนต์: | คัมมินส์ / 6BT5.9-G2 |
| ยี่ห้อเครื่องปั่นไฟ: | สแตมฟอร์ด,เมค-อัลเต้,ก็อปปี้สแตมฟอร์ด,ฟาราเดย์ | ความถี่: | 50เฮิร์ต/60เฮิร์ตใช้ได้ |
| ประเภทเครื่องกำเนิดไฟฟ้า: | เปิด,เงียบ,ตัวอย่าง.. | น้ำหนักสุทธิ (กก.): | 1085 |
| โมดูลควบคุม: | ดิ๊ปซี คอมแอป สมาธ์เจน | บรรจุุภัณฑ์: | บรรจุโฟมพลาสติกหรือกล่องไม้อัด |
| เน้น: | genset silent portable,silent diesel genset |
||

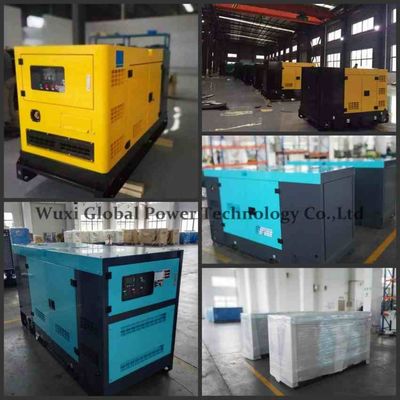

New Model Silent Diesel Generator Set With Lovol / Perkins / Volvo / Vman / Yangdong / Kofo Diesel Engine
Standard Supply Scope:
Optional supply scope:
1.ATS
2. Synchronization System
3. External daily fuel tank
4. Silent Canopy
5. Trailer
6. Auto Fuel Pump
7. Fuel and Water Separator
8. Lub Oil Heater
9. Coolant Heater
10. Fuel Drain Pump
Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
Technical Specifications:
|
Genset |
Voltage Recovery Time |
≤1S |
|
|
Rated Frequency (Hz) |
50 |
||
|
Frequency Recovery Time |
≤5S |
||
|
Running Noise db(A)/7m(Silent type) |
75 |
||
|
Battery capacity (V-Ah) |
12V 100Ah |
||
|
Engine |
Engine brand |
Cummins |
|
|
Cylinder No. & Config. |
4, in-line |
||
|
Combustion System |
direct injection |
||
|
Engine Speed (r/min) |
1500 |
||
|
Speed Governing |
Mechanical |
||
|
Starting System |
24V DC Electric |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Cooling system |
Water-cooled |
||
|
Alternator |
Alternator brand |
Stamford, Mecc-alte,Faraday… |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3phase,4wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%～105% |
||
|
Protection Grade |
IP23 |
||
Control system
l Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
l Security password-protected programming levels
l All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
l Power supply range is wide, accommodating to different starting battery voltage environment
l Built-in watch dog can never be dead halt, ensuring smooth program execution
l Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
Our Features :
1) Universal design and manufacture
2) Engineers are familiar with diesel generators powered by Cummins engine
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
7) Service and maintenance accessible through easy-latch side service door
Package:
Global Power advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
