รายละเอียดสินค้า:
การชำระเงิน:
|
| แบรนด์เครื่องยนต์: | เพอร์กินส์ คัมมินส์ MTU ริคาร์โด้ อีซูซุ lovol FAW xichai | จัดอันดับพลังงาน: | 8kkw- 2500kw |
|---|---|---|---|
| แรงดันไฟฟ้า (V): | 400 / 230 โวลต์ | การควบคุมความเร็ว: | อิเล็กทรอนิกส์ |
| ความเร็วรอบเครื่องยนต์ (รอบ/นาที): | 1500 รอบต่อนาที | ระบบทำความเย็น: | ระบายความร้อนด้วยน้ำ |
| จัดอันดับความถี่: | 50 Hz | แบรนด์เครื่องกำเนิดไฟฟ้ากระแสสลับ: | เมกคัลเต้ สแตมฟอร์ด มหาอำนาจระดับโลก |
| เน้น: | marine diesel genset,power generating sets |
||

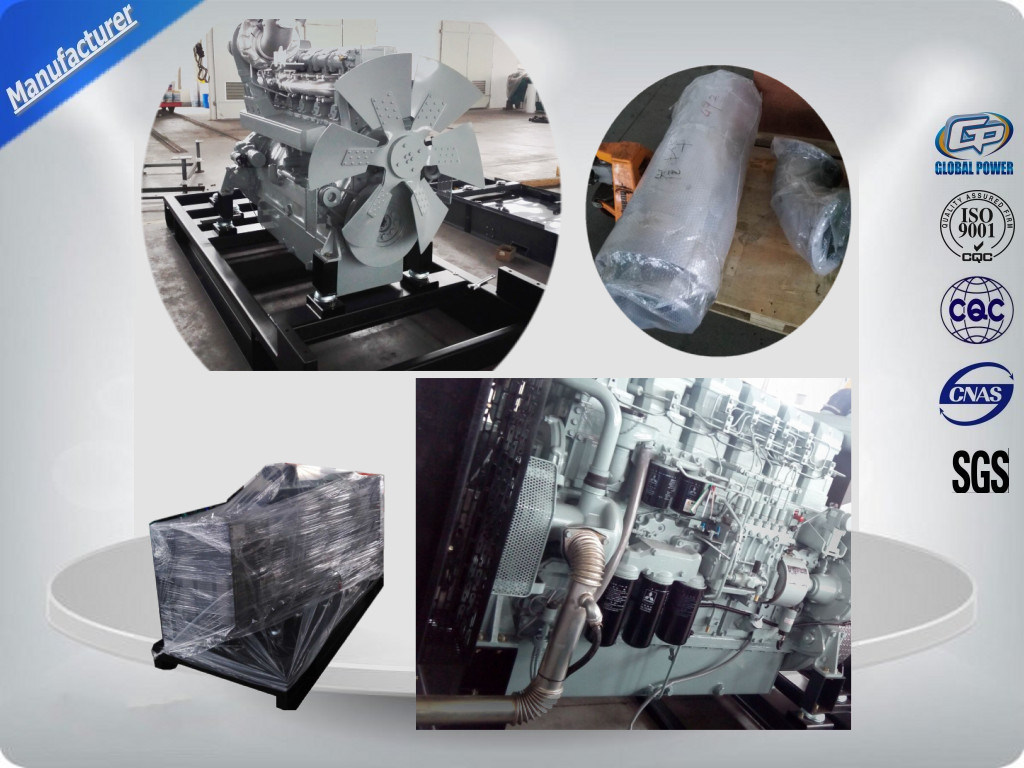

Electric starter open AC three phase open diesel generator with ABB breaker
Genset Features:
1. Genuine diesel engine
2. Radiator 40°C, 50℃ available; fans are driven by belt, with safety guard
3. Genuine stamford. Leroy somer, marathonm, engga alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8. 10-hour operation base tank
9.Mould case circuit breaker
10. 24V DC start motor and storage battery
11. 24V charge alternator
12. 24V batteries, rack and cable
13. Rippl;e flex echaust pipe, exhaust siphon, flange, and muffler
14. Comply with ISO and CE standards
15. All generator sets are gone through rigorous testing before beging released to the market place, including 50% load, 75% load, 100% load and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
Engine Features:
1. Genuine Brand New diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Technical Specifications :
|
Genset |
Voltage Recovery Time |
≤1S |
|
|
Rated Current (A) |
504 |
||
|
Rated Frequency (Hz) |
50 |
||
|
Frequency Recovery Time |
≤5S |
||
|
Running Noise db(A)/7m(Silent type) |
75 |
||
|
Battery capacity (V-Ah) |
24V 100Ah |
||
|
Fuel Tank Capacity(L) |
/ |
||
|
Engine |
Cylinder No. & Config. |
6, in-line |
|
|
Combustion System |
direct injection |
||
|
Compression Ratio |
16.3:1 |
||
|
Displacement (L) |
12.5 |
||
|
Bore X Stroke (mm) |
130*157 |
||
|
Engine Speed (r/min) |
1500 |
||
|
Speed Governing |
Electronic |
||
|
Starting System |
24V DC Electric |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Cooling system |
Water-cooled |
||
|
Alternator |
Alternator brand |
Stamford, Mecc-alte,Faraday |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3phase,4wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%～105% |
||
|
Protection Grade |
IP23 |
||
Competitive service:
1) More than 15 years advanced production experience.
2) As OEM factory, we have obvious competitive in price and leading times.
3) Provide debugging and maintenance service to you.
4) Professional 8 Hours testing for Generator before shipment.
5) 1000 hours warranty on the spare parts free provide & technical support in machine life.
Warranty and Maintenance:
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
