WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
ผู้ใช้ต้องมาก่อน, ยึดมั่นความซื่อสัตย์; สร้างแบรนด์ GP ด้วยคุณภาพ, สร้างชื่อเสียงด้วยบริการ
รายละเอียดสินค้า:
การชำระเงิน:
|
| แบรนด์เครื่องยนต์: | มิตซูบิชิ คัมมินส์ MTU ริคาร์โด้ อีซูซุ lovol FAW xichai | แรงดันไฟฟ้า: | 400 / 230 โวลต์ |
|---|---|---|---|
| การควบคุมความเร็ว: | อิเล็กทรอนิกส์ | ความเร็วรอบเครื่องยนต์ (รอบ/นาที): | 1500/1800 รอบต่อนาที |
| ระบบทำความเย็น: | ระบายความร้อนด้วยน้ำ | จัดอันดับความถี่: | 50/60 Hz |
| แบรนด์เครื่องกำเนิดไฟฟ้ากระแสสลับ: | เมกคัลเต้ สแตมฟอร์ด มหาอำนาจระดับโลก | คนอื่น: | ATS,ถังน้ำมัน,แจ็คเก็ตเครื่องทำน้ำอุ่น.... |
| เน้น: | marine diesel genset,power generating sets |
||

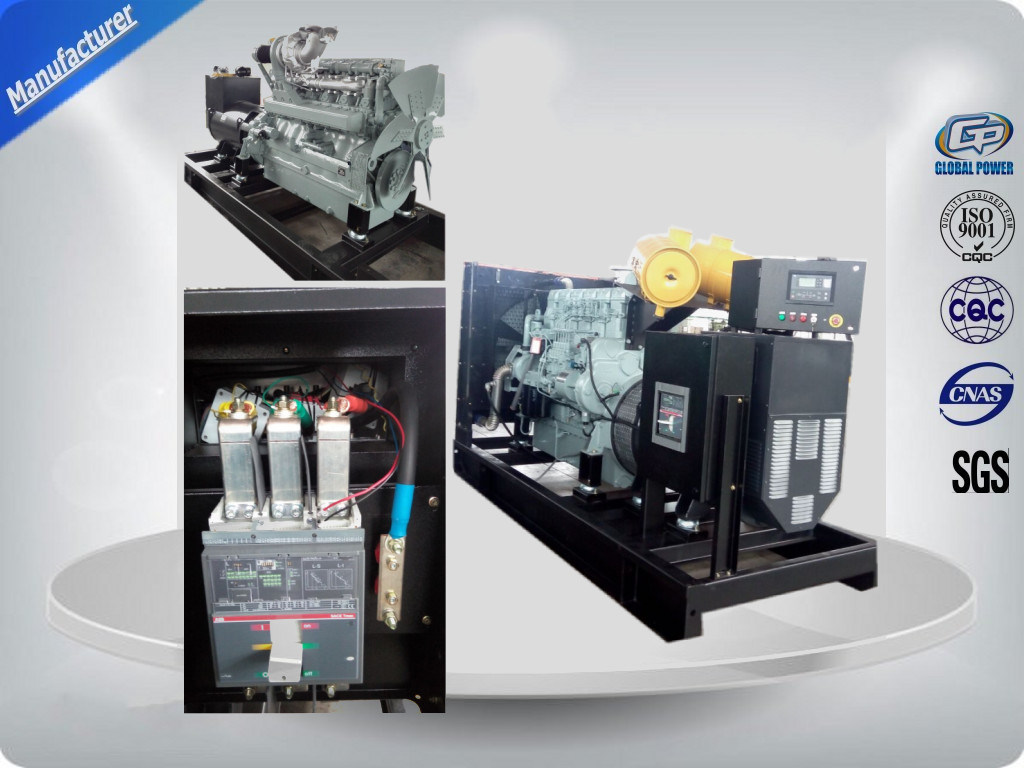

Mitsubishi series diesel generator set 600 - 2250 kva Military quality standard
Genset Features:
Engine Features:
1. Genuine Brand New diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Technical Specifications :
|
Genset |
Voltage Recovery Time |
≤1S |
|
|
Rated Current (A) |
504 |
||
|
Rated Frequency (Hz) |
50 |
||
|
Frequency Recovery Time |
≤5S |
||
|
Running Noise db(A)/7m(Silent type) |
75 |
||
|
Battery capacity (V-Ah) |
24V 100Ah |
||
|
Fuel Tank Capacity(L) |
/ |
||
|
Engine |
Cylinder No. & Config. |
6, in-line |
|
|
Combustion System |
direct injection |
||
|
Compression Ratio |
16.3:1 |
||
|
Displacement (L) |
12.5 |
||
|
Bore X Stroke (mm) |
130*157 |
||
|
Engine Speed (r/min) |
1500 |
||
|
Speed Governing |
Electronic |
||
|
Starting System |
24V DC Electric |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Cooling system |
Water-cooled |
||
|
Alternator |
Alternator brand |
Stamford, Mecc-alte,Faraday |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3phase,4wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%~105% |
||
|
Protection Grade |
IP23 |
||
Competitive service:
1) More than 15 years advanced production experience.
2) As OEM factory, we have obvious competitive in price and leading times.
3) Provide debugging and maintenance service to you.
4) Professional 8 Hours testing for Generator before shipment.
5) 1000 hours warranty on the spare parts free provide & technical support in machine life.
Warranty and Maintenance:
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
