รายละเอียดสินค้า:
การชำระเงิน:
|
| รุ่นเครื่องยนต์: | 6BTAA5.9-G2 | ระบบการเผาไหม้: | การฉีดโดยตรง |
|---|---|---|---|
| อัตราส่วนกำลังอัด: | 16.0:1 | ระบบเริ่มต้น: | ไฟฟ้ากระแสตรง 24V |
| จัดอันดับปัจจุบัน (A): | 1621 | ปริมาณการใช้เชื้อเพลิง (กรัม/กิโลวัตต์·ชั่วโมง): | 208 |
| ความจุน้ำมัน (ลิตร): | 16.4 | ||
| เน้น: | Emergency Generator Set,power generating sets |
||

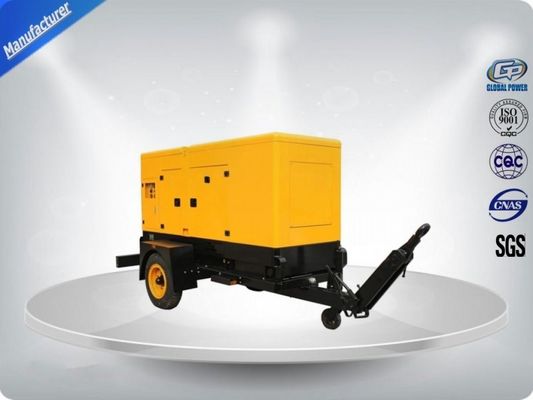

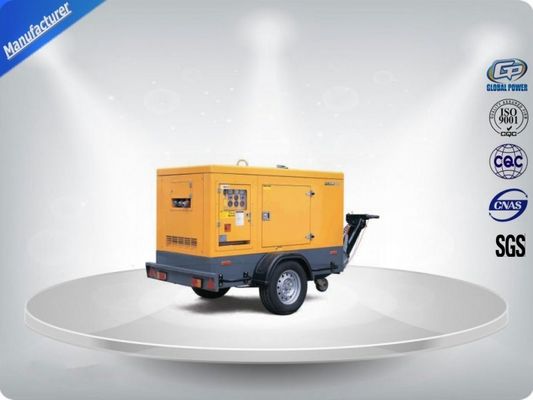

Silent type cummins 1000 kw diesel generator 6BTAA5.9-G2 with wheels
Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
Diesel Generator GPC100 (three phase)
| Prime Power (kw/kva) | 100/125 |
| Standby Power (kw/kva) | 110/138 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 180 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 24V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 2320*790*1455 |
| Open Type-Weight (kg) | 1200 |
| Soundproof Type- Dimension (L*W*H) (mm) | 3050*1100*1600 |
| Soundproof Type-Weight (kg) | 3000 |
| Fuel Tank Capacity(L) | 180 |
| Continuous Running Time(hr.) | 8 |
Engine Technical data
Model 6BTAA5.9-G2
| Engine brand | Cummins |
| Output Power (kw) | 120 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 16.0:1 |
| Displacement (L) | 5.9 |
| Bore X Stroke (mm) | 102*120 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 29 |
| Fuel Consump. (g/kw·h) | 208 |
| Oil Capacity (L) | 16.4 |
Alternator Technical data
Model UCI274D
| Alternator brand | Stamford |
| Rated Power (kw) | 96 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Our advantages :
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
Warranty and Maintenance:
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
