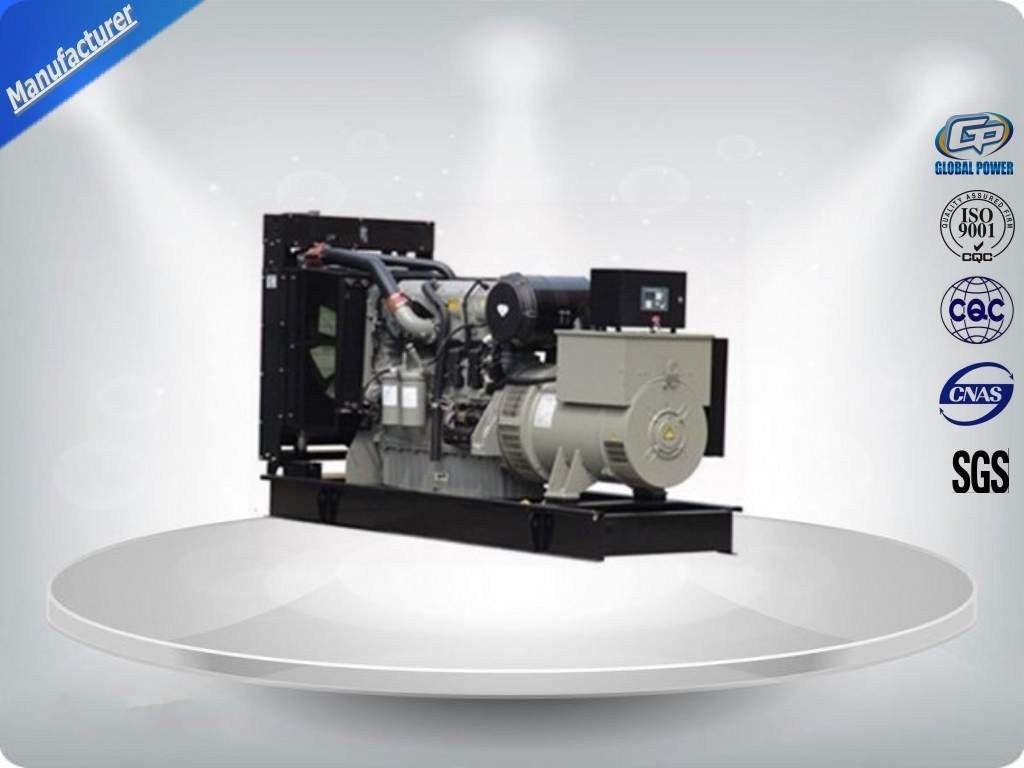

90kw Diesel Generator Set With Atomatic Alarm System , Insulation Class H
-
-
ภาพใหญ่ :
90kw Diesel Generator Set With Atomatic Alarm System , Insulation Class H
|
รายละเอียดสินค้า:
| สถานที่กำเนิด: |
มณฑลเจียงซูประเทศจีน |
| ชื่อแบรนด์: |
Global Power |
| ได้รับการรับรอง: |
CE / ISO |
| หมายเลขรุ่น: |
จีพี ดีเอส90 |
การชำระเงิน:
| จำนวนสั่งซื้อขั้นต่ำ: |
1ชุด |
| ราคา: |
negotiable |
| รายละเอียดการบรรจุ: |
โฟมพลาสติกหรือกล่องไม้อัดบรรจุ |
| เวลาการส่งมอบ: |
25 วันหลังจากได้รับเงินดาวน์ |
| สามารถในการผลิต: |
2,000 ชุด / ปี |
|
รายละเอียดสินค้า
| ไพรม์ พาวเวอร์: |
90 กิโลวัตต์ |
แบรนด์เครื่องยนต์: |
Doosan |
| ยี่ห้อเครื่องปั่นไฟ: |
สแตมฟอร์ด/เมคคาลเต้/ก็อปปี้สแตมฟอร์ด |
ความจุของแบตเตอรี่: |
12V 100Ah |
| เวลาทำงานต่อเนื่อง: |
8 ชม. |
หมายเลขกระบอกสูบและการกำหนดค่า: |
6 ในบรรทัด |
| ความเร็วของเครื่องยนต์: |
1500 รอบต่อนาที |
การควบคุมความเร็ว: |
อิเล็กทรอนิกส์ |
| เน้น: |
marine diesel genset, power generating sets |
90kw diesel geneator with Doosan engine, ATS/open/silent/trailer for choise
Basic Specification:
- Engine brand, Doosan.
- Alternator brand, Meccalte, Stanform, GP...etc
- Direct injection internal combustion engine
- AC synchronous generator ( single bearing)
- Cooling way, radiator with fan & water tank
- Open type, closed type ( with sound proof canopy, trailer, container)
- Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set
- Anti-vibration isolaters
- Brushless 3 phase
- Integral guel tank ( 8 hours)
- sound proof, weather proof canopy is optional ( both open type and closed type can be made)
- 50/60hz
- Atomatic alarm system
- Insulation, class H
Technical Specifications :
Genset:
| Prime Power (kw/kva) | 90/113 |
| Standby Power (kw/kva) | 99/124 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 162 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 2500*830*1420 |
| Open Type-Weight (kg) | 1600 |
| Soundproof Type- Dimension (L*W*H) (mm) | / |
| Soundproof Type-Weight (kg) | / |
| Fuel Tank Capacity(L) | / |
| Continuous Running Time(hr.) | 8 |
Engine:
Main features:
- Six-cylinder, water-cooled, in-line diesel engine
- Efficient fuel system for max power output and durability
- Large-capacity air cleaner
- Cost effective, fuel efficient and reliable performance
- Functional engine with compact structure
- Excellent after-sales service and sufficient spare parts supplying
- Easy installation and ready access for routine maintenance
Model D1146T
| Engine brand | Doosan |
| Output Power (kw) | 108 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 17.5:1 |
| Displacement (L) | 8.071 |
| Bore X Stroke (mm) | 111*139 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 34 |
| Fuel Consump. (g/kw·h) | 205.7 |
| Oil Capacity (L) | 15.5 |
Alternator:
Main features:
- Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
- 2/3 pitch winding as standard, to avoid excessive neutral currents
- Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
- Easy access for installation and maintenance
- IP23 as standard
- Self-excited control system
- Resist of corruption of oil and acid
Model UCI274D
| Alternator brand | Stamford |
| Rated Power (kw) | 96 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Controller features:
- Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
- Security password-protected programming levels
- All parameters use digital modulation, with higher reliability and stability
- Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
- Power supply range is wide, accommodating to different starting battery voltage environment
- Built-in watch dog can never be dead halt, ensuring smooth program execution
- Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
Our Picture :
Standard Supply Scope:
- Advanced design and excellent processed: The engine with strong power, can adapt to any condition, such as high strength and heavy load.
- Integrated design: The cylinder block and head are designed as multi-funtional parts so that the number of the partshas reduced 40% compare with competitive engines. The failure rate has markedly reduced.
- Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame .
- Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
