WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
ผู้ใช้ต้องมาก่อน, ยึดมั่นความซื่อสัตย์; สร้างแบรนด์ GP ด้วยคุณภาพ, สร้างชื่อเสียงด้วยบริการ
รายละเอียดสินค้า:
การชำระเงิน:
|
| ไพรม์ พาวเวอร์: | 200kW | จัดอันดับความถี่: | 50เฮิร์ต |
|---|---|---|---|
| แบรนด์เครื่องยนต์: | วอลโว่ | ยี่ห้อเครื่องปั่นไฟ: | สแตมฟอร์ด |
| เปิดประเภท-น้ำหนัก: | 2423 กิโลกรัม | จัดอันดับปัจจุบัน: | 361 |
| ความจุของแบตเตอรี่: | 12V 100Ah | เวลาทำงานต่อเนื่อง: | 8ชม. |
| เน้น: | marine diesel genset,power generating sets |
||

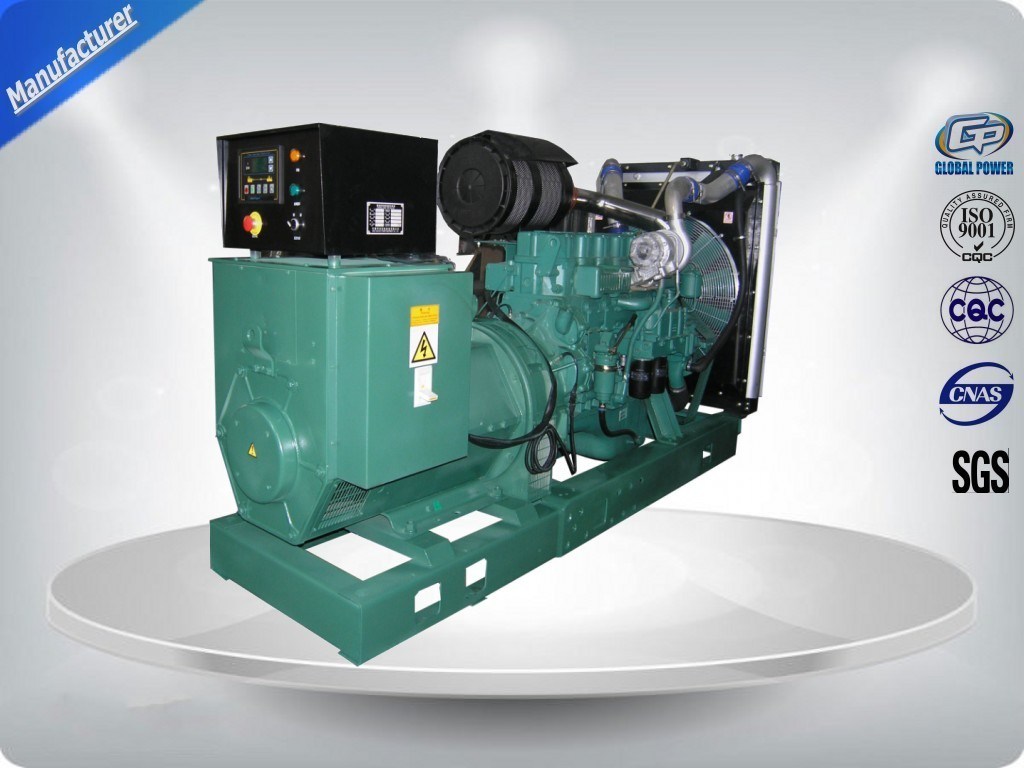

250kVA Imported Engine Diesel Generator Powered By Volvo Diesel Engine
Model TAD1343GE
| Engine brand | VOLVO |
| Output Power (kw) | 216 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 17:1 |
| Displacement (L) | 7.15 |
| Bore X Stroke (mm) | 108*130 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 37.1 |
| Fuel Consump. (g/kw·h) | 204 |
| Oil Capacity (L) | 34 |
Alternator:
Main features:
Model HCI444FS
| Alternator brand | Stamford |
| Rated Power (kw) | 200 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient |
THF＜2%
|
Features and benefits
l Tightly structure, excellent design and craft
l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
l Self-diagnostic capability simplifies troubleshooting
l LCD display shows system status and setup information
l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
l Enclosed muffler for added quietness
l Service and maintenance accessible through easy-latch side service door
Technical Specifications:
Genset:
| Prime Power (kw/kva) | 200/250 |
| Standby Power (kw/kva) | 220/275 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 361 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 2700*1060*1550 |
| Open Type-Weight (kg) | 1880 |
| Soundproof Type- Dimension (L*W*H) (mm) | 3800*1700*2100 |
| Soundproof Type-Weight (kg) | 3200 |
| Fuel Tank Capacity(L) | 570 |
| Continuous Running Time(hr.) | 8 |
Engine:
Main features:
Control system
l Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
l Security password-protected programming levels
l All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
l Power supply range is wide, accommodating to different starting battery voltage environment
l Built-in watch dog can never be dead halt, ensuring smooth program execution
l Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
