รายละเอียดสินค้า:
การชำระเงิน:
|
| ไพรม์ พาวเวอร์: | 480KW | จัดอันดับความถี่: | 50เฮิร์ต |
|---|---|---|---|
| แบรนด์เครื่องยนต์: | มิตซูบิชิ | ยี่ห้อเครื่องปั่นไฟ: | สแตมฟอร์ด |
| จัดอันดับปัจจุบัน: | 866เอ | เปิดประเภท-น้ำหนัก: | 4665กก |
| ความจุของแบตเตอรี่: | 12V 100Ah | เวลาการกู้คืนแรงดันไฟฟ้า: | ≤1วินาที |
| เน้น: | marine diesel genset,power generating sets |
||

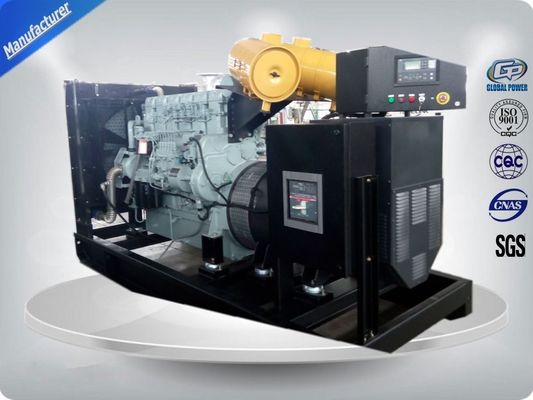

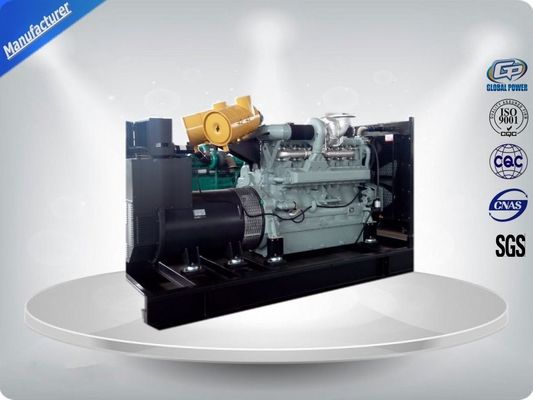

480Kw Mitsubishi Diesel Generator Sets Powered By Stamford Alternator HCI 544E
Features and benefits
1.Tightly structure, excellent design and craft
2.Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
3.Self-diagnostic capability simplifies troubleshooting
4.LCD display shows system status and setup information
5.Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
6.Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
7.Enclosed muffler for added quietness
8.Service and maintenance accessible through easy-latch side service door
| Genset Model |
Prime Power (KW/KVA) |
Standby Power (KW/KVA) |
Alternator Model |
Rated Power (KW/KVA) |
Engine Model |
Rated Output (KW) |
Standby Power (KW) |
| TKS160 | 160/200 | 176/220 | SLG274H | 160/200 | 6120ZLD | 220 | 242 |
Alternator:
Main features:
Model HCI544F
| Alternator brand | Stamford |
| Rated Power (kw) | 488 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Technical Specifications:
Genset:
| Prime Power (kw/kva) | 480/600 |
| Standby Power (kw/kva) | 528/660 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 866 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 3560*1420*2049 |
| Open Type-Weight (kg) | 4665 |
| Soundproof Type- Dimension (L*W*H) (mm) | / |
| Soundproof Type-Weight (kg) | / |
| Fuel Tank Capacity(L) | / |
| Continuous Running Time(hr.) | 8 |
Engine:
Main features:
Model S6R-PTA
| Engine brand | MITSUBISHI |
| Output Power (kw) | 555 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | / |
| Displacement (L) | 24.51 |
| Bore X Stroke (mm) | 170*180 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 113 |
| Fuel Consump. (g/kw·h) | 205 |
| Oil Capacity (L) | 94 |
Control system
l Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
l Security password-protected programming levels
l All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
l Power supply range is wide, accommodating to different starting battery voltage environment
l Built-in watch dog can never be dead halt, ensuring smooth program execution
l Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
Standard Supply Scope:
Similar products:
Cummins diesel generator set,Deutz diesel generator, Doosan generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
