รายละเอียดสินค้า:
การชำระเงิน:
|
| ไพรม์ พาวเวอร์: | 200kW | แบรนด์เครื่องยนต์: | คัมมินส์ |
|---|---|---|---|
| ยี่ห้อเครื่องปั่นไฟ: | สแตมฟอร์ด | ความจุของแบตเตอรี่: | 12V 100Ah |
| หมายเลขกระบอกสูบและการกำหนดค่า: | 6 ในบรรทัด | ความเร็วของเครื่องยนต์: | 1500 รอบต่อนาที |
| การกระจัด: | 8.9 ลิตร | ||
| เน้น: | Emergency Generator Set,power generating sets |
||

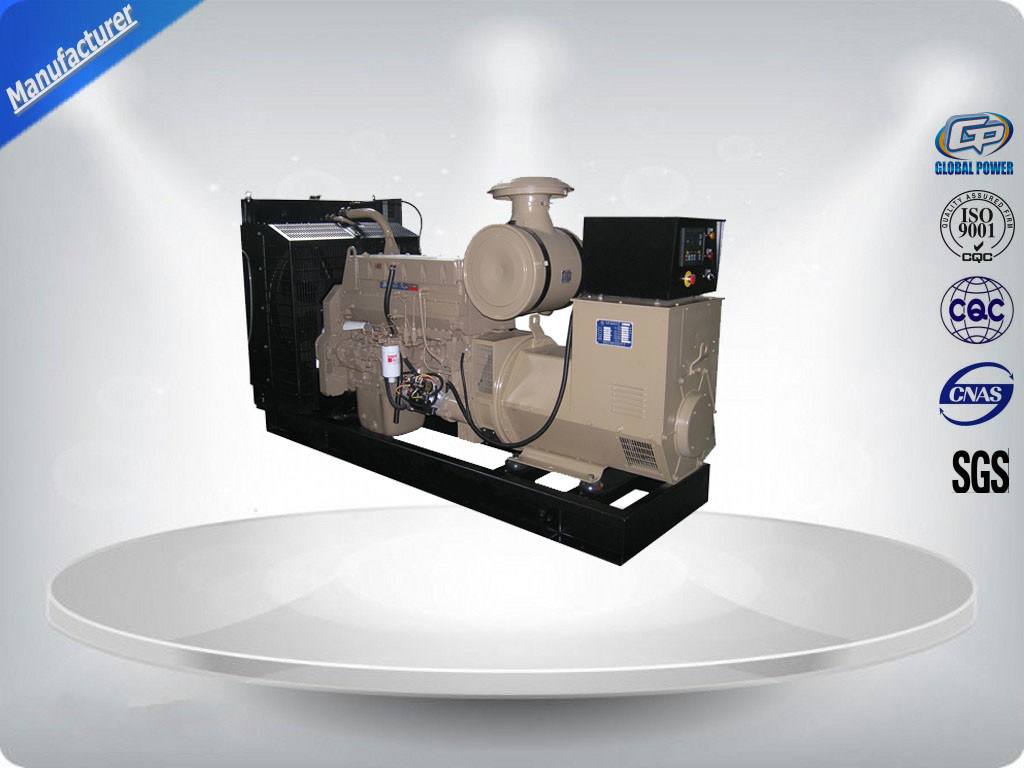

200KW Cummins Engine Diesel Generator Set with Stamford alternator UCDI274K/200
Features and benefits
l Tightly structure, excellent design and craft
l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
l Self-diagnostic capability simplifies troubleshooting
l LCD display shows system status and setup information
l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
l Enclosed muffler for added quietness
l Service and maintenance accessible through easy-latch side service door
Technical Specifications:
Genset:
| Prime Power (kw/kva) | 200/250 |
| Standby Power (kw/kva) | 220/275 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 361 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 2540*965*1450 |
| Open Type-Weight (kg) | 1700 |
| Soundproof Type- Dimension (L*W*H) (mm) | 3500*1300*1800 |
| Soundproof Type-Weight (kg) | 4300 |
| Fuel Tank Capacity(L) | 350 |
| Continuous Running Time(hr.) | 8 |
Engine:
Main features:
Model 6LTAA8.9-G3/230
| Engine brand | Cummins |
| Output Power (kw) | 230 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 16.0:1 |
| Displacement (L) | 8.9 |
| Bore X Stroke (mm) | 114*145 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Mechanical |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 41 |
| Fuel Consump. (g/kw·h) | 197 |
| Oil Capacity (L) | 27.6 |
Alternator:
Main features:
Model UCI274G
| Alternator brand | Stamford |
| Rated Power (kw) | 200 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Control system
l Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
l Security password-protected programming levels
l All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
l Power supply range is wide, accommodating to different starting battery voltage environment
l Built-in watch dog can never be dead halt, ensuring smooth program execution
l Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
Standard Supply Scope:
Advanced design and excellent processed: The engine with strong power, can adapt to any condition, such as high strength and heavy load.
Integrated design: The cylinder block and head are designed as multi-funtional parts so that the number of the partshas reduced 40% compare with competitive engines. The failure rate has markedly reduced.
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame .
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
