รายละเอียดสินค้า:
การชำระเงิน:
|
| ไพรม์ พาวเวอร์: | 730KW / 913KWA | แรงดันไฟฟ้าที่ได้รับการจัดอันดับ: | 400V / 230V |
|---|---|---|---|
| แบรนด์เครื่องยนต์: | คัมมินส์ | รุ่นเครื่องยนต์: | Kta38-g2a |
| ยี่ห้อเครื่องปั่นไฟ: | สแตนฟอร์ด | เครื่องกำเนิดไฟฟ้ากระแสสลับรุ่น: | HCI634H |
| ระบบควบคุม: | IL-NT-AMF25 | ||
| เน้น: | Emergency Generator Set,power generating sets |
||
730 KW 900 KWA Diesle Genarator Set With Cummins Generator and Stanford Alternator High Efficiency Low Emission
Model: GPC730
Applications: Home, Buildings, Hospitals, Train station,Bank, Telecom, Mining, Military, Outdoor projects, etc.
Features and benefits:
1. Tightly structure, excellent design and craft
2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
3. Self-diagnostic capability simplifies troubleshooting
4. LCD display shows system status and setup information
5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
7. Enclosed muffler for added quietness
8. Service and maintenance accessible through easy-latch side service door
Diesel Generator GPC730 (three phase)
| Prime Power (kw/kva) | 730/913 |
| Standby Power (kw/kva) | 803/1004 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 1316 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 4450*1650*2400 |
| Open Type-Weight (kg) | 6700 |
| Soundproof Type- Dimension (L*W*H) (mm) | 6000*2400*2800 |
| Soundproof Type-Weight (kg) | 10500 |
| Fuel Tank Capacity(L) | 1200 |
| Continuous Running Time(hr.) | 6 |
Engine specifications
Technical data
Model KTA38-G2A
| Engine brand | Cummins |
| Output Power (kw) | 813 |
| Cylinder No. & Config. | 12,in “V” |
| Combustion System | direct injection |
| Compression Ratio | 14.5:1 |
| Displacement (L) | 38 |
| Bore X Stroke (mm) | 159*159 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 194 |
| Fuel Consump. (g/kw·h) | 200 |
| Oil Capacity (L) | 135 |
Engine
Main Features:
1. Twelve-cylinder, water-cooled, in “V” diesel engine
2. Efficient fuel system for max power output and durability
3. Large-capacity air cleaner
4. Cost effective, fuel efficient and reliable performance
5. Functional engine with compact structure
6. Excellent after-sales service and sufficient spare parts supplying
7. Easy installation and ready access for routine maintenance
Alternator Specifications
Technical data
Model HCI634H
| Alternator brand | Stamford |
| Rated Power (kw) | 752 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |

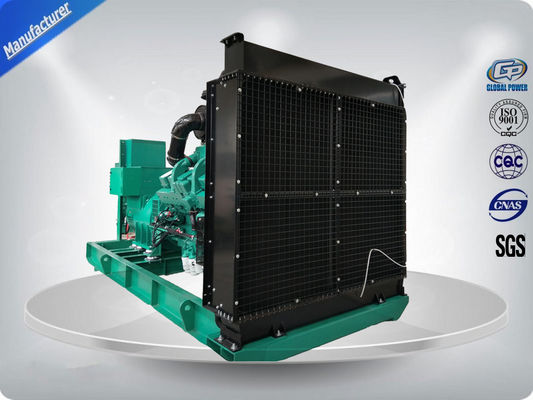

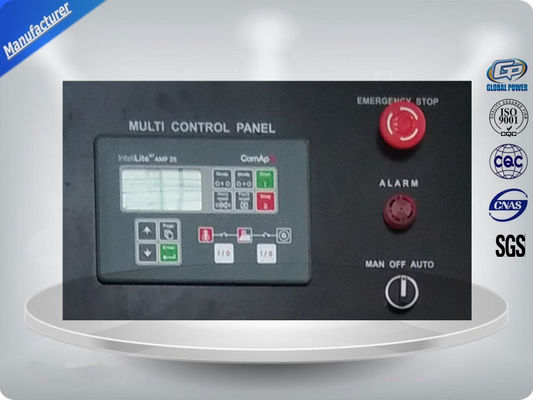

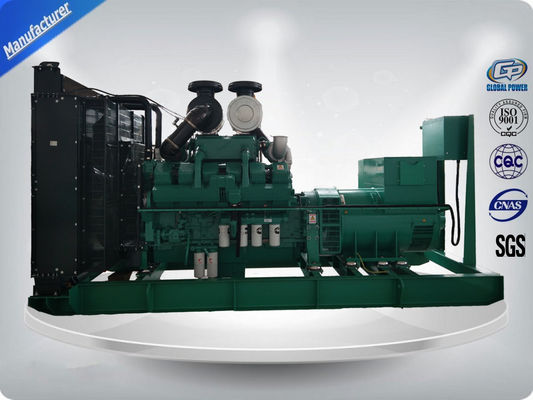

Product Display
Product Quality Commitment
1. All products are new products, and meet the present national standard, international standard as well as the industrial standards
2. All products are manufactured according to the ISO9001 Quality Management System strictly.
3. All products are commissioned and tested strictly according to present standard.
4. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
5. All spare parts are original ones.
Service Commitment
1. Pre-sale service
Suggest the best choice or referential suggestion based on customer’s information. Offer the suggestion or service of the installation to customer if needed. Answer all questions about the product from customer.
2. Sale of service
Offer the installation index by the professionals. The training or relative files of the operation & maintenance to the customers.
3. After-sale service
Warranty time: one year or 1000 running hours, whichever comes first. Build customers’ profiles, follow-up service, make regular calls on customers.
